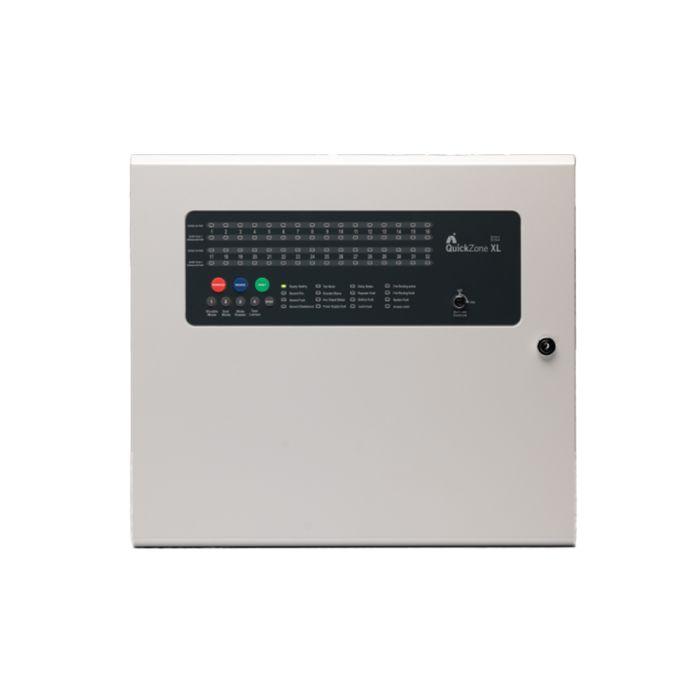

The QuickZone XL 32 is a 16 to 32 Zone Conventional Control Panel with integral power supply and space for appropriate standby batteries. The panel extends the QuickZone range with the same high levels of quality and reliability, as well as remaining easy to install, maintain and simple to use for the end user.

Up to 32 fire zone circuits are provided as well as four monitored sounder circuits, complete with 500mA resettable fuses. Fire and fault VFCO relays along with fire, fault, disablement and reset programmable switched negative outputs. Class change and alert inputs are also available.

DIL switches within the panel are used to allow Zone Interface setting and also to allow access to level 3. Dependency modes A, B and C are available to help reduce false alarms. The panel is very cost effective and even allows for one man walk tests.

In Level 1, the panel can indicate any faults present (supply, fire, system, general and repeater), as well as reporting on the status of the whole system (Fire, disablements, Fire routing active, auxiliary and sounder output status). It will also clearly indicate if in Test mode.

Level 2 access enables the Resound, Silence and Reset controls. Disable and Test modes can also be established in this level. This level also permits the muting of the internal buzzer and the ability to test the functionality of all the LED indicators.

In access Level 3, it is possible to select sounder resound options for zones, (EN54 requirement), as well as permitting the user to view and edit dependency functions. Factory settings can be restored, the event log viewed and access provided to panel wide settings, including access codes and delays to outputs.
