Product Code
EV-IO-420 (F16-82255)
SKU
NI2518420

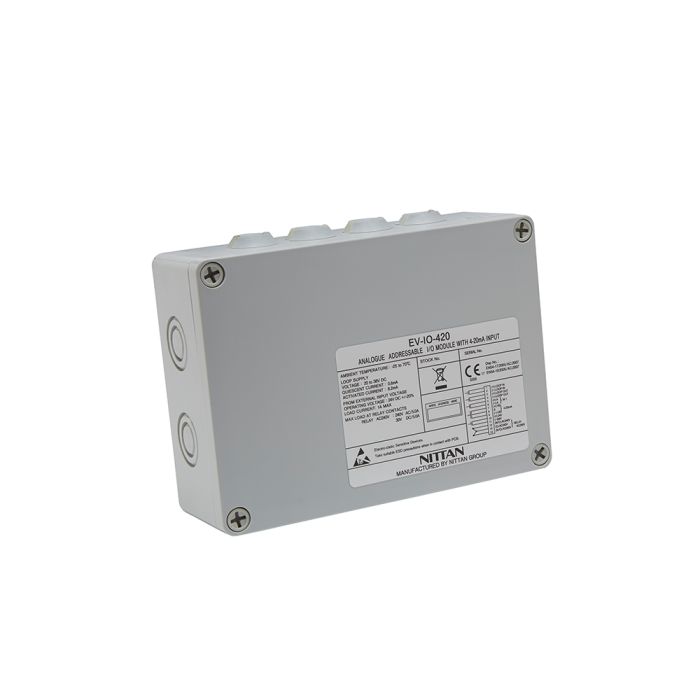

Nittan Evolution Addressable 4-20mA Input/Output Module
Evolution Addressable 4-20mA Input Output Module
DELIVERY
We always aim to same day dispatch on all orders received before 2.30pm.
TRADE COUNTER
Firesense also offer the ability to collect your order from our trade counter.
EV-IO-420 is a 4-20mA Input / Output Module, with integral –ve line Short Circuit Isolator compatible with Evolution Analogue Addressable system devices. The 4-20mA input can be configured to operate in Sink or Source mode. The Module includes setting options for a normally closed contact input and Fail Safe mode for Door release requirement. LEDs are provided to indicate 4-20mA Input, Input & Output active, Fault and Isolator Open.
- 1 x Class B Input
- 1 x 4-20mA Input
- 5A@240Vac Rated Relay
- Integral -ve Isolater
- EEPROM Addressed (Programmer)
| Category Type | Interface |
|---|---|
| Colour | White |
| Interface Type | Input/Output |
| System Type | Addressable |
